This homepage is about Wx-satellite pictures, and how to receive them, with home made equipment.
IT IS NOT FOR COMMERCIEL USE
CONSTRUCTIONS WITH ENGLISH TEXT
( PCB and SCHEMATICS can be downloaded )
With thanks to Peter Tanner for help with the translations

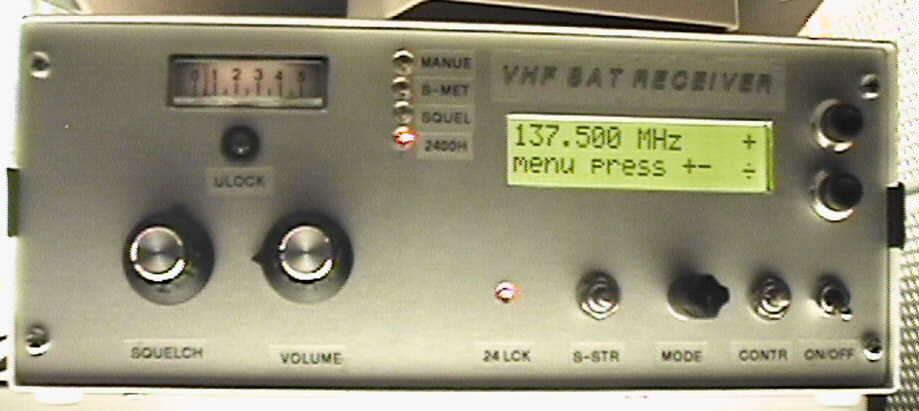

VHF RECEIVER WITH LCD DISPLAY.
Download reciver construktion

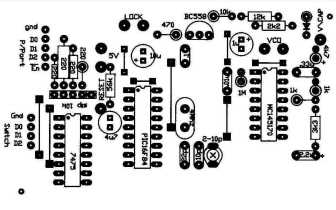

New PLL for the APT receiver with PIC processor
from Bruce. VK7DKY
DOWNLOAD TEXT, PCB , AND PROGRAM

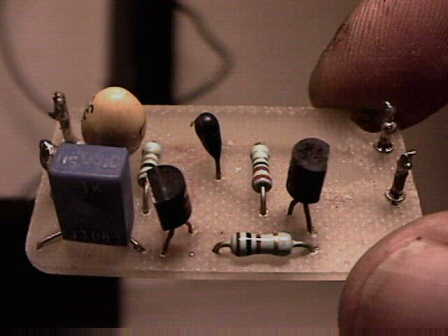

Frame antenne and amplifier 100 - 150 khz.
for HF fax.
Download frame ant and amp.
HANDY AND EASY SIGNAL GENERATOR UP TO 1.7GHZ

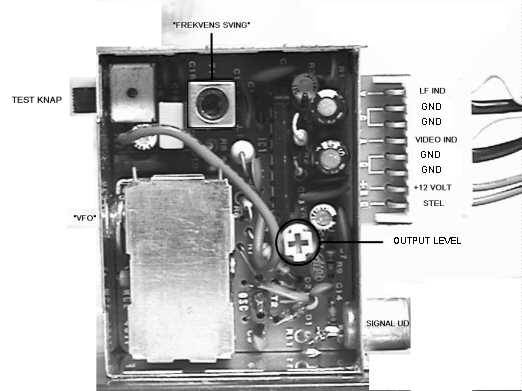

.This picture shows a modulator, from a video
recorder, it can be used as a simple signal generator.
A video modulator, "transmits" from the VCR, to the television set, normally between channels 32 and 38.
If you put an LF signal into the modulator, you get a nice FM modulated output
a very handy thing, when you have to tune a down converter to 1.7 Ghz.
So get a hold of the next old VCR you see.
DATA FRQ. AND OUTPUT LEVELS
Frq Channel 32-38....: 532.750 - 638.850 Mhz. Max signal. 22.50 mv
2 Harmonic.............: 1065.500 - 1277.700 Mhz. Max signal. 2.25 mv
3 Harmonic.............: 1598.250 - 1916.550 Mhz. Max signal. 0.71 mv

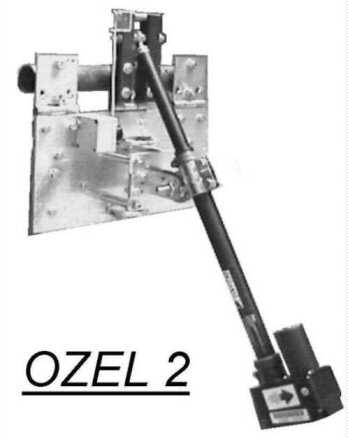

ELEVATION ROTATOR UNITs
Download both OZEL and OZEL 2 to get all drawings)
Download OZEL 2

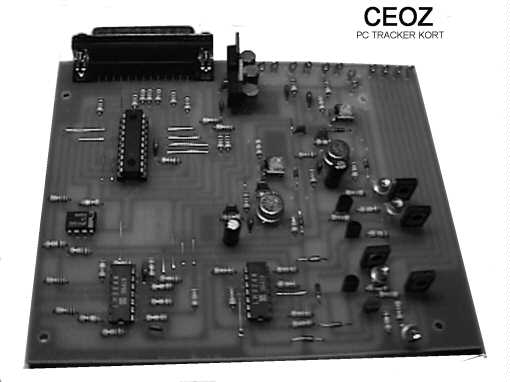

CEOZ PC tracker card
OBS: uses the parallel port.
( If you use an´old computer with DOS, it will work fine.)
Check the elevation
How to check the elevation rotor system, with
a laserpointer, or a pice of wirer
2x36 elm. X beam for HRPT.

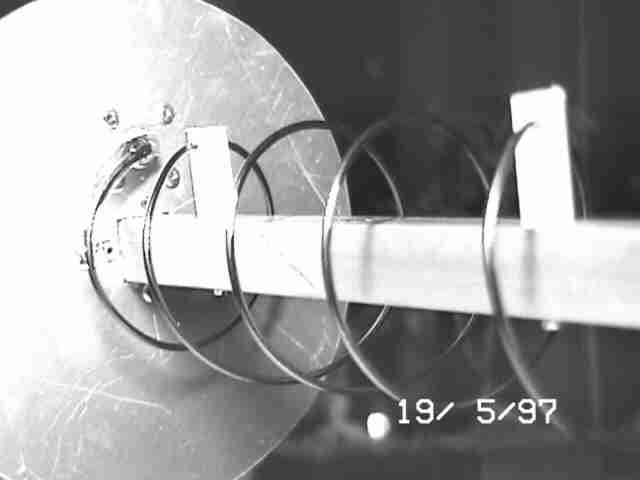

19 turns RH Helix.
Download 19 turns RH Helix

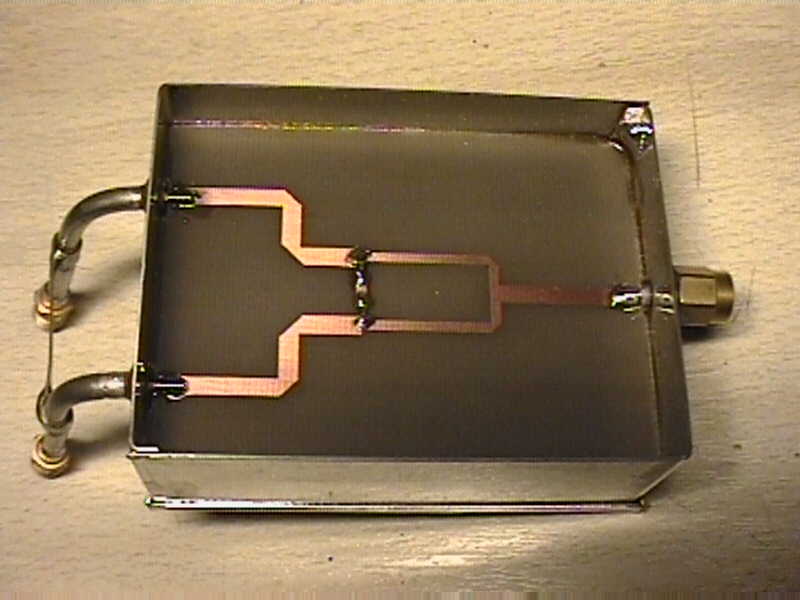

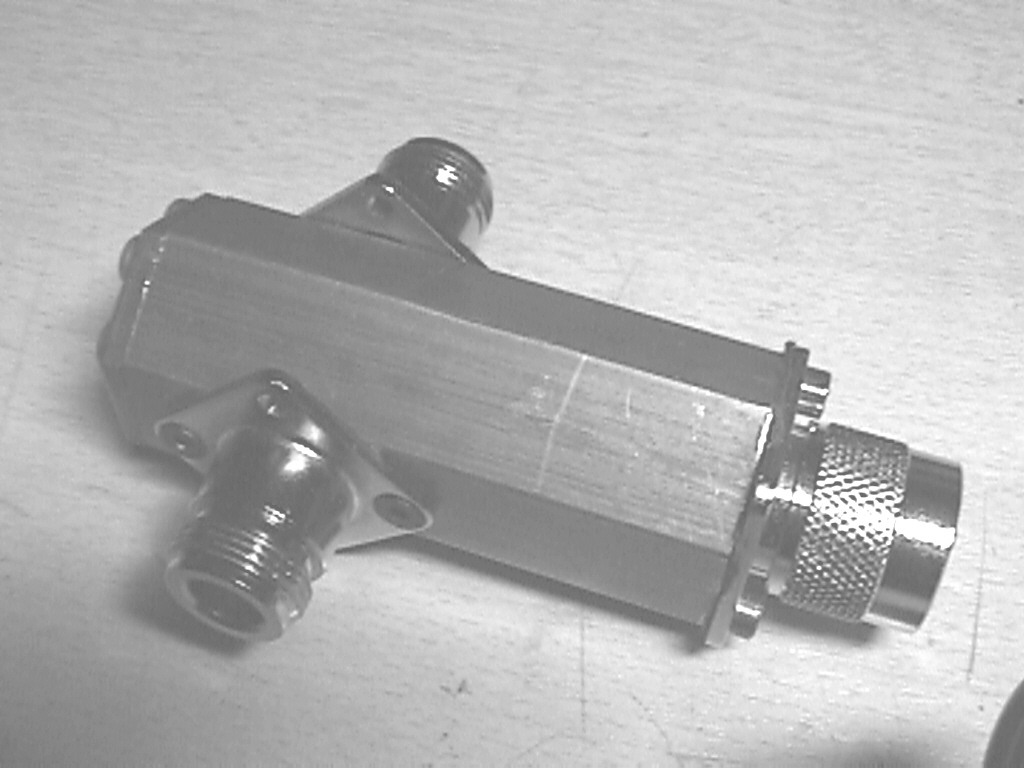

Download artikel about combiners and construction for 1700 Mhz
Download combiner (1700 Mhz) PCB
e-mail , Michael,
